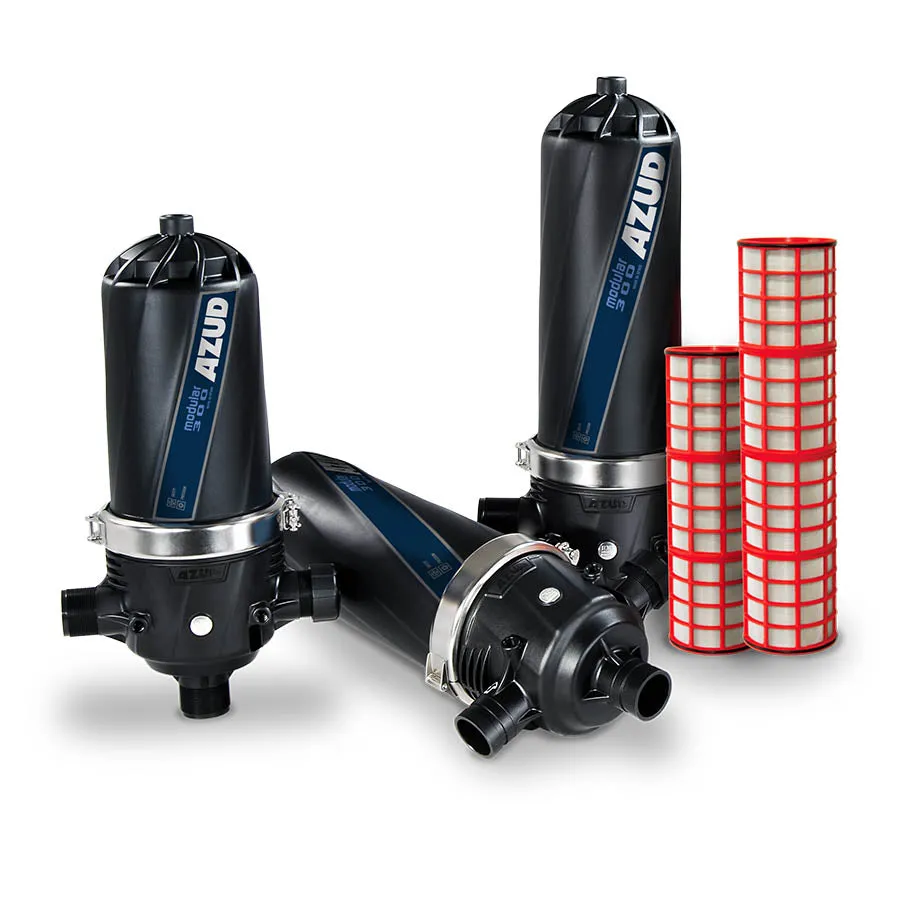

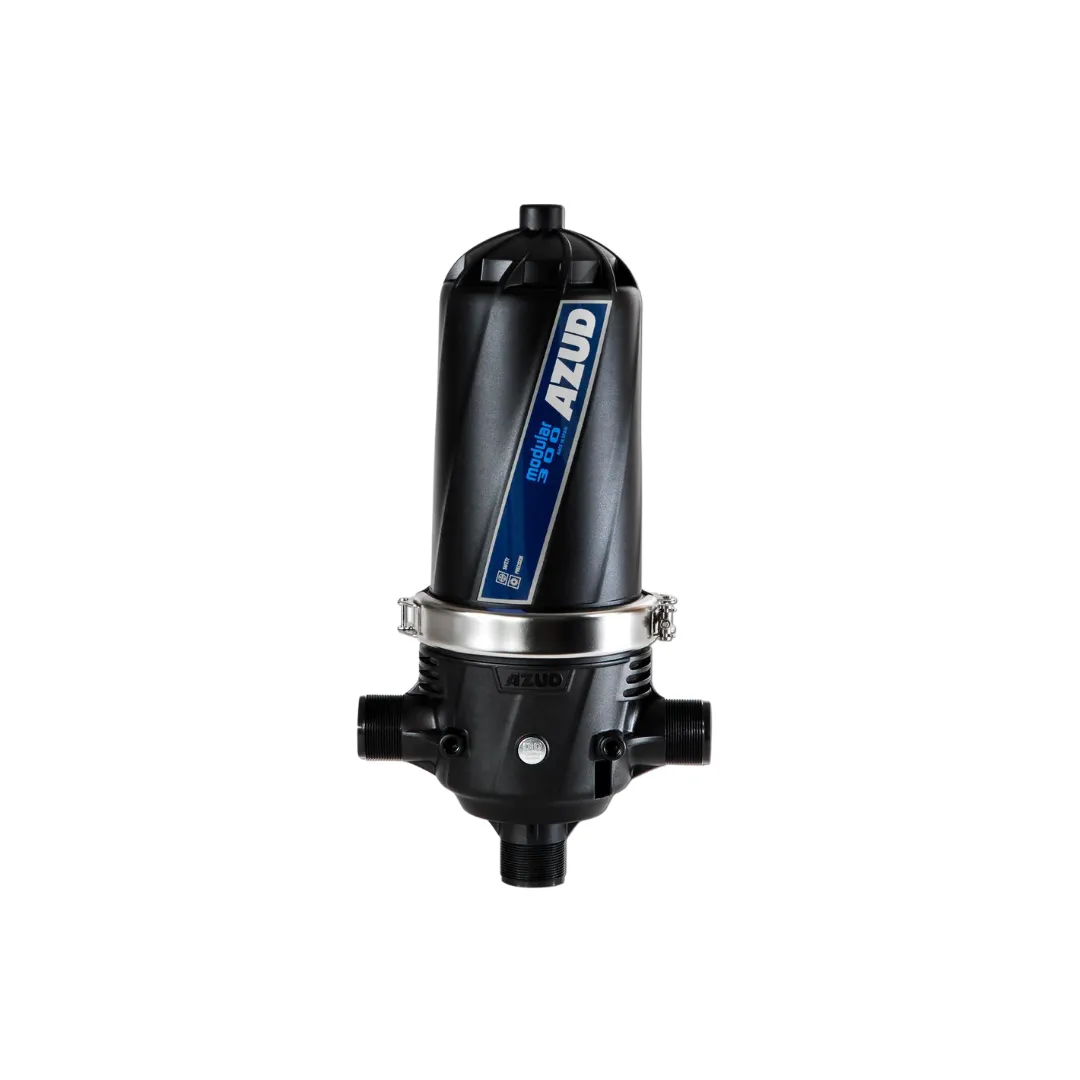

Azud M300 80mm Polypropylene Manual Modular Screen Filter
The Azud Super Modular M300 is a line of manual filters designed specifically for irrigation water filtration. These filters prioritize maximum filtration safety and boast optimized performance with minimal maintenance requirements. UV stabalised thermoplastic construction.
FEATURES
- Its studied design and manufacture guarantee a long service life, resistance and filtration quality.
- Modularity - Permits a wide range of possibilities with a minimal number of components
- Versatility, compatibility, easy maintenance.
- The modular system allows a wide range of possibilities with a minimum number of components.
- Made of technical plastic.
- Low maintenance. - no tools are required
- Maximum strength, no moving parts susceptible to wear.
- Water and energy savings.
SPECIFICATIONS
- Pressure gauge connections
- Auxiliary connection
- BSP/NPT/GROOVED connection

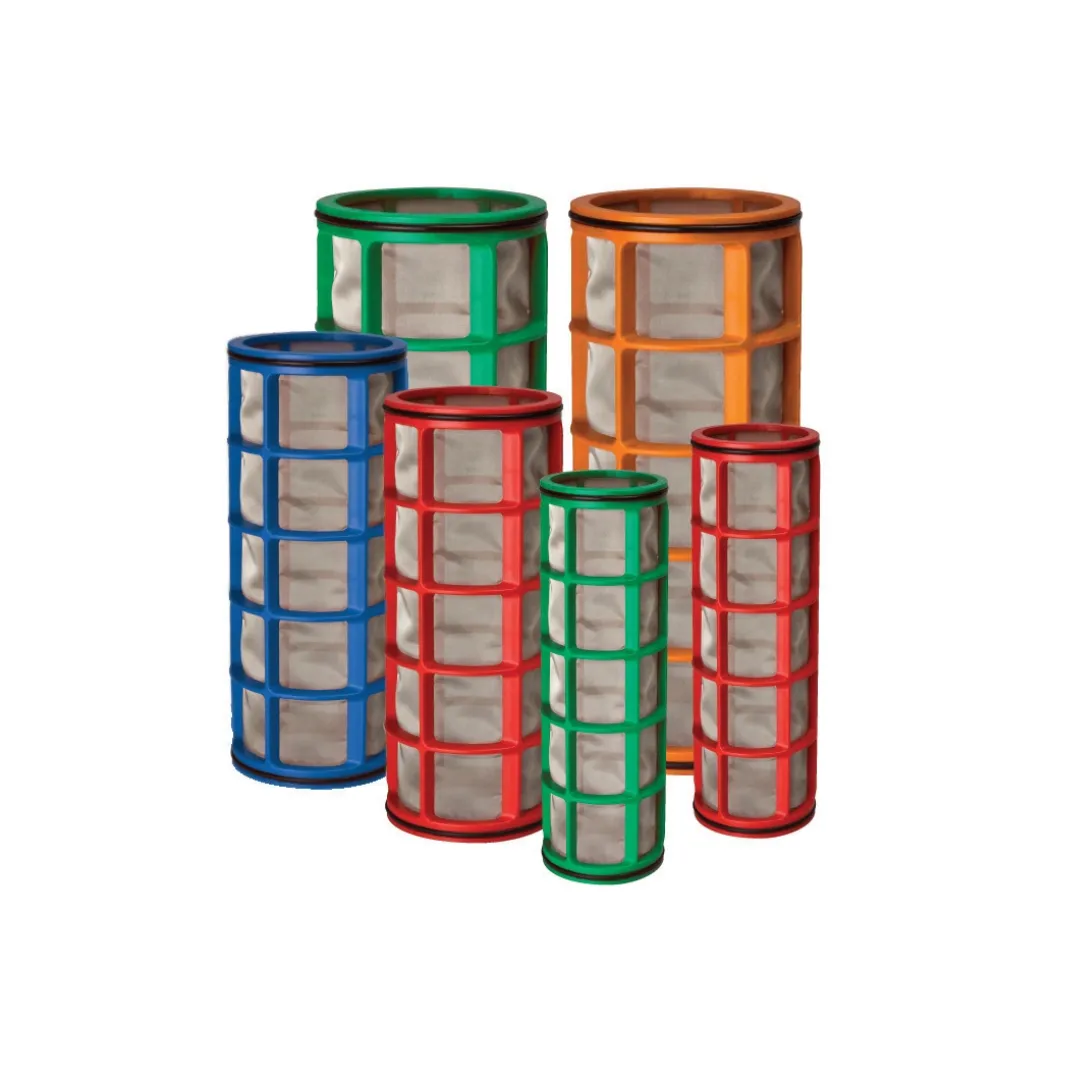

- Modular Filter - interchangeable elements in different filtration grades
- Materials of construction
- Housing - Polyamide reinforced with fiberglass
- Filtering element - AISI 316 stainless steel screen
- Clamp - stainless steel
- Sealing element - NBR

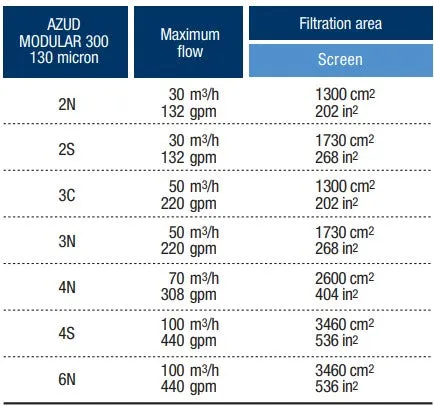

- Filtration degrees of 100, 130 and 200 micron
- Maximum Flow - 50m3/h
- Filtration Area - 1730cm2
- 3" connection
